This small system is designed to make a player capsule dynamic in an attempt to make a more accurate capsule to mesh collision. This system utilizes Sphere Trace by Channel to check if a point in the mesh is near a wall or a collision point. Trace is done in a socket / bone to check if if mesh is near a wall.

Bones traced in this test:

• head
• spine_03
• lowerarm_l
• hand_l
• lowerarm_r
• hand_r
• calf_l
• calf_r
• pelvis
• calf_twist_01_l
• calf_twist_01_r

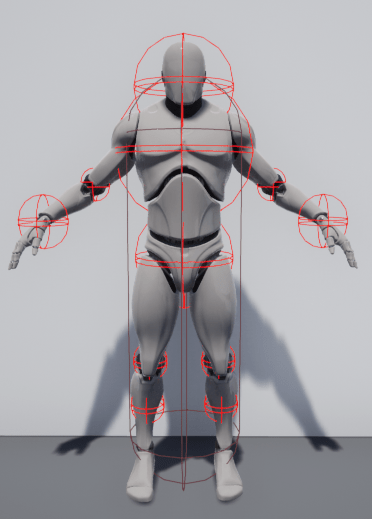

Sphere Traces are done on bones illustrate above, these traces are done every frame.

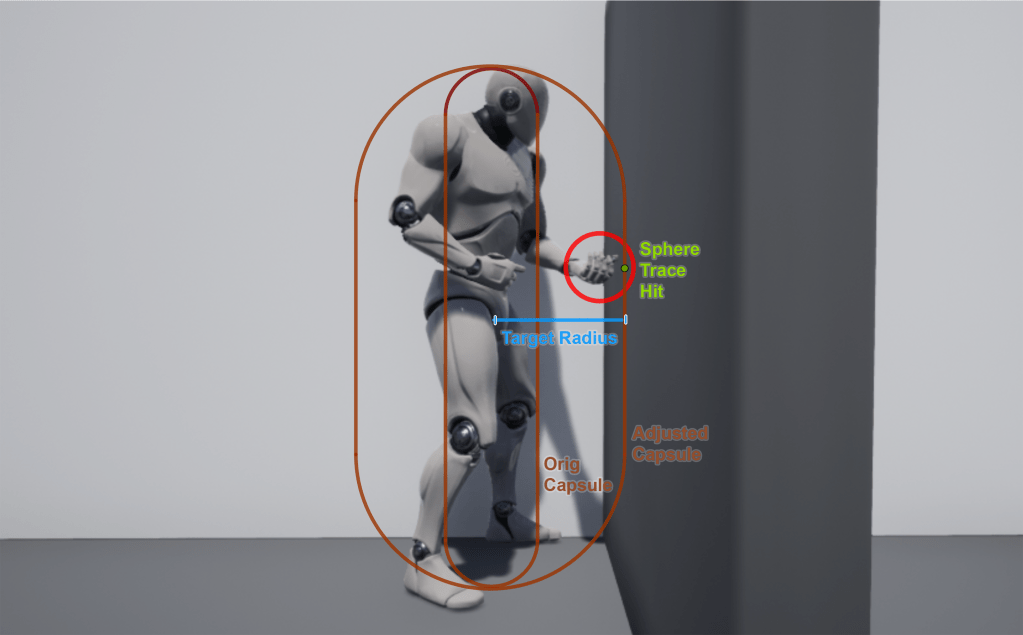

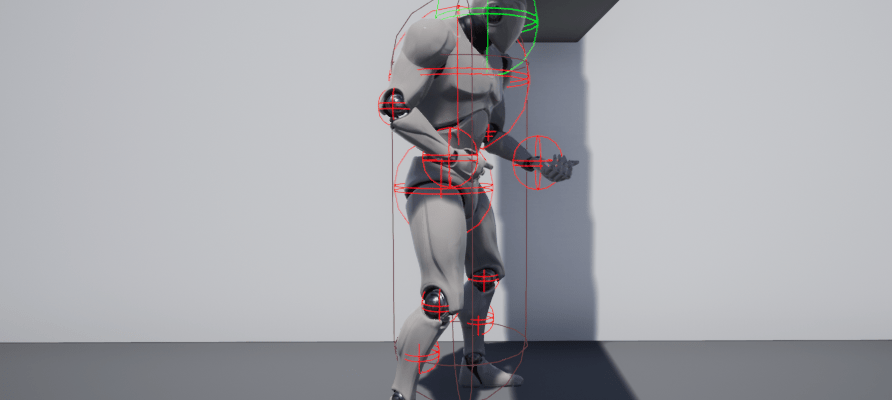

If a trace hit happens, system takes the hit location calculates the distance from capsule world location to the hit location (only x, y coordinates no z) and takes that was the new target radius. The capsule will then finterp to the new Adjusted Capsule.

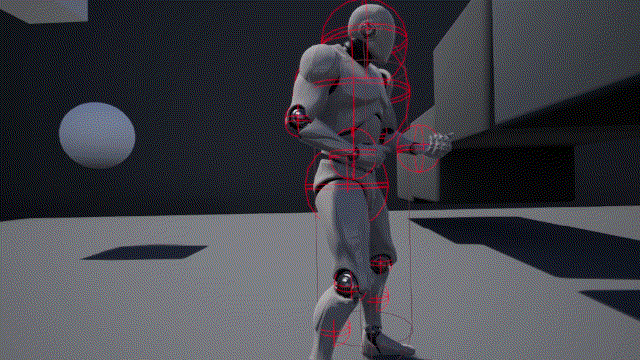

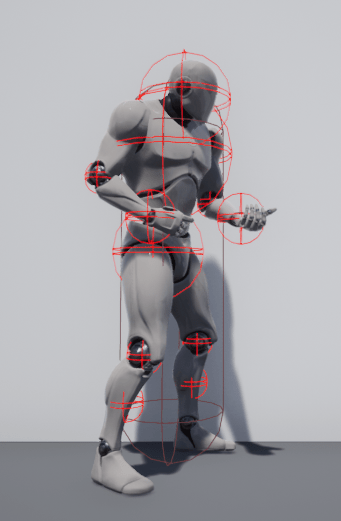

In action:
